Stainless Double Acting Hydraulic Ram Telescopic 2 Way Welding Chrome

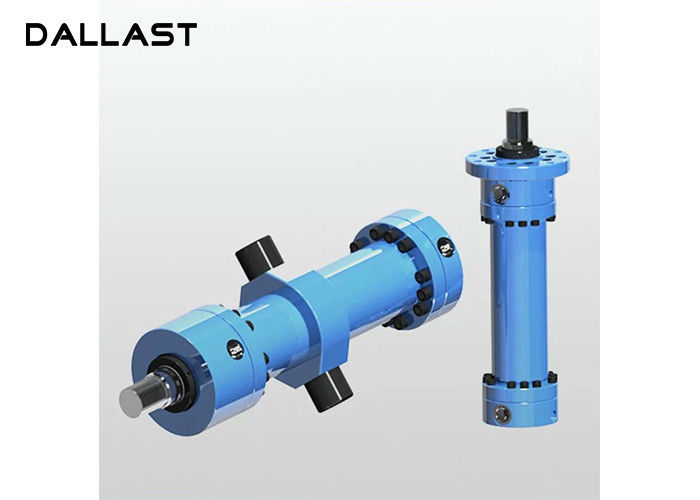

Double Acting Flange Long Stroke Hydraulic Cylinder Design With Piston

Production specification:

Structure: Piston Type cylinder

Hardness: HRC40-55

Tube: Cold drawn honed tubling

Piston rod: Chromed CK45#

Mounting style: Flange ,Double Earring

Paint color: Any color you will need

Bore Diameter: 20mm to 1000mm

Max. Stroke: 20000mm,

Working Pressure: Max to 700Bar

Advantage:

      Hydraulic cylinder is special products, According to user requirements, design and manufacture of this series of products.professional custom non-standard.OEM service is available.We are pleased to process according to the customer's drawings.Please kindly send us your drawings, models or providing us your parameters and specification of the hydraulic cylinder like sleeves O.D., total stroke, rated pressure, closed length, vehicle body length, etc. We can determine the most suitable model for you.We will provide competitive price.We have professional R&D team with rich design experience.We also establish strict but scientific product testing system so that products have perfect.We are the leader manufacturer of hydraulic industry in China with experience and technology accumulation. With strong technical team we could solve any annoyance of you.The quality management system introduced is: ISO/TS 16949:2009-certified by NQA and IATF cert.

     It depends on the ordering quantity. Generally, we will take 20-25 days. If there are any changes, we will inform you in time.

     We have 12 months warranty. In this year, if the quality problem we will free repair for you.

The company mainly products

1. Engineering hydraulic cylinder series:

Hydraulic cylinder mainly refers to: hydraulic cylinders for hydraulic systems such as construction machinery, heavy machinery, cranes and mining machinery, but not limited to the above. Hydraulic cylinder for the double-acting, single-piston hydraulic cylinder, the installation of more use of earrings, according to the cylinder head and cylinder connection can be divided into different ways of external thread connection, the card key connection and flange connection.

2. Metallurgical equipment hydraulic cylinder

Metallurgical equipment standard hydraulic cylinder with a variety of specifications and varieties, bore diameter is generally in the 40-320mm range, working pressure ≤ 16MPa, available hydraulic oil mechanical system loss of oil and emulsion and other working medium, the use of temperature range of -40 ~ 80 ℃ , The installation of a flange, earrings, pins and other forms and in line with ISO6020 / 1-1981 standards, in addition to tripod (base) type.

3. Vehicles hydraulic cylinder

This series of hydraulic cylinders is mainly used in hydraulic systems of construction machinery, lifting and transport machinery, mining equipment and other vehicles, the installation method is: earrings, are double-acting single-piston hydraulic cylinder.

4. Heavy duty hydraulic cylinder

CD / CG250 CD / CG350 series heavy duty hydraulic cylinder
Heavy-duty hydraulic cylinder has a single-piston double-acting CD-type differential piston cylinder and double acting CG-type double-acting piston cylinder two. Its installation form and size in line with ISO3320 standards, especially suitable for harsh environments, heavy working conditions, suitable for steel, casting and machinery manufacturing and other occasions.

5. Telescopic sleeve hydraulic cylinder

TG series of single-acting multi-stage telescopic sleeve hydraulic cylinder, with small size, large stroke, etc., can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder.
